Introduction

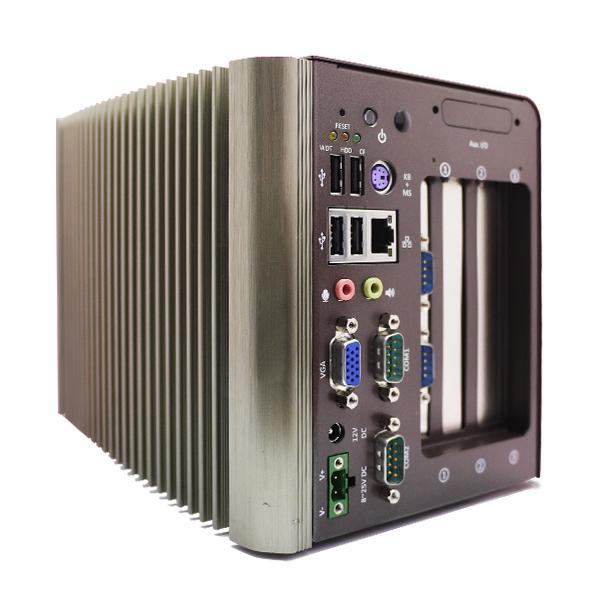

Nuvo-2000+ is a Intel® Atom™ D525 fanless embedded computer with expandability, usability and durability!
Nuvo-2000+, the enhanced version of our previous Nuvo-2000, presents new features such as dual Gigabit Ethernet ports and dual independent VGA outputs. It is also come with a newly-designed chassis for better user experience, as well as superior system stability in various environments.
Leveraging Intel® Atom™ D525 1.8GHz dual-core processor, Nuvo-2000+ accommodates three PCI/PCIe cards and two 2.5” hard drives in its shoe-box size. More than that, it provides versatile I/O interfaces, such as COM ports, USB ports, parallel port, dual GbE ports and isolated digital I/O, to fulfill general industrial requirements. Dual independent VGA outputs of Nuvo-2000+ bring more feasibility for machine vision or HMI/SCADA applications.
Nuvo-2000+ also features an ingenious mechanical design, which allows wide temperature range from -20 to 70°C fanless operation and the flexibility of wall-mounting or DIN-Rail mounting. Its compact size, PCI/PCIe slots and simple yet useful I/O functions fit most applications where a reliable platform is needed.
■ NEOUSYS MARKETING TEAM
Product Highlights
Performance Advantage
Nuvo-2000+ utilizes the latest Atom D525 processor. It is a 2-cores/4-threads CPU works with DDR3-800 memory. According to benchmarking result, Atom D525 has better performance than previous Pentium M CPU and is very close to entry-level Core 2 Duo CPU. This gives Nuvo-2000 adequate computing power for most industrial control applications.
3x Expansion Slots for Add-on Cards
Nuvo-2000+ accommodates three PCI/PCIe slots in its compact chassis. Two configurations, three PCI slots, or two PCI slots plus one x4 PCIe slot, can be chosen according to your application requirements. With capacity of installing three add-on cards, you can expand a much wider range of applications with Nuvo-2000+.
Small and Smart Chassis Design
Nuvo-2000+ has an ingenious mechanical design which gives considera-tion to small dimension, superior heat dissipation, flexible wall-mounting or DIN-Rail mounting, and intuitive pattern of use. Furthermore, its compact chassis can accommodate two 2.5” SATA hard drives to expand your storage capacity.
Dual VGA, Dual GbE and isolated DIO
Nuvo-2000+ offers rich I/O configuration for industrial usage. Its dual VGA supports independent display output which is particularly useful for machine vision or SCADA applications. Dual GbE ports provides more Ethernet connectivity and bandwidth. Or you can use its isolated digital I/O for device control.
Specification
| System Core |
| Processor |
Intel® Atom™ D525 1.8GHz dual-core processor |
| Chipset |
Intel® ICH8-M I/O Control Hub |
| Graphics |
Integrated Intel® GMA 3150 graphics |
| Memory |
1x 204-pin SO-DIMM socket,
up to 4GB DDR3 800MHz SDRAM |
| Front-panel I/O Interface |
| Ethernet |
2x Intel® 82574L Gigabit Ethernet port |
| Video Port |
1x DB-15 connector for VGA output, supporting 2048
x 1536 resolution |
| Serial Port |
1x software-programmable RS-232/422/485 (COM1)
1x RS-232 (COM2) |
| USB |
4x USB 2.0 ports |
| Audio |
1x Mic-in and 1x Speaker-out |
| Expansion Bus |
| PCI Express |
1x PCI Express x4 slot (Nuvo-2021+ only) |
| PCI |
3x PCI slots (Nuvo-2030+)
2x PCI slots (Nuvo-2021+) |
| Internal I/O Interface |
| Video Port |
1x Optional 2nd VGA output via flat cable, supporting
1366 x 768 resolution |
| Serial Port |
2x RS-232 (COM3 & COM4) |
| Parallel Port |
1x Parallel port |
| Isolated DIO |
Optional 8-CH isolated DI + 8-CH isolated DO |
| Storage Interface |
| SATA HDD |
2x Internal SATA ports for 2.5” HDD/SSD installation |
| CompactFlash |
1x Type I & II CF socket |
| Power Supply |
| DC Input |
Built-in 8~25 VDC DC input |
| Input Connector |
1x 2-pin pluggable terminal block for DC input
1x DC jack (ø2.5) for AC/DC adapter input |
| Mechanical |
| Dimension |
138 mm (W) x 157mm (H) x 226 mm (D) |
| Weight |
2.9 kg (including one 2.5” HDD and DDR3 SODIMM) |
| Mounting |
Wall-mounting (standard) or DIN-Rail mounting (optional) |
| Environmental |
| Operating Temperature |
-20°C ~ 70°C, 100% CPU loading */** |
| Storage Temperature |
-40°C ~ 85°C |
| Humidity |
10%~90% , non-condensing |
| Vibration |
Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD,
according to IEC60068-2-64) |
| Shock |
Operating, 50 Grms, Half-sine 11 ms Duration (w/
SSD, according to IEC60068-2-27) |
| EMC |
CE/FCC Class A, according to EN 55022 & EN 55024 |
*The 100% CPU loading is applied using Intel® Thermal Analysis Tool. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature range HDD drive or Solid State Disk (SSD) is required.
Nuvo-2021+
Intel® Atom™ D525 fanless embedded computer with two PCI slots and one PCI Express x4 slot, single VGA version
Nuvo-2030+
Intel® Atom™ D525 fanless embedded computer with three PCI slots, single VGA version
Nuvo-2021DV+
Intel® Atom™ D525 fanless embedded computer with two PCI slots and one PCI Express x4 slot, dual VGA version
Nuvo-2030DV+
Intel® Atom™ D525 fanless embedded computer with three PCI slots, dual VGA version
Option of isolated digital input/output (8 DI + 8 DO) with panel/cable kit
Option for DIN-Rail mounting clip for Nuvo-2000+
Panel/cable kit for 2x COM ports
Panel/cable kit for 1x COM + 1x LPT ports
60W AC/DC power adapter with 12V, 5A DC output
