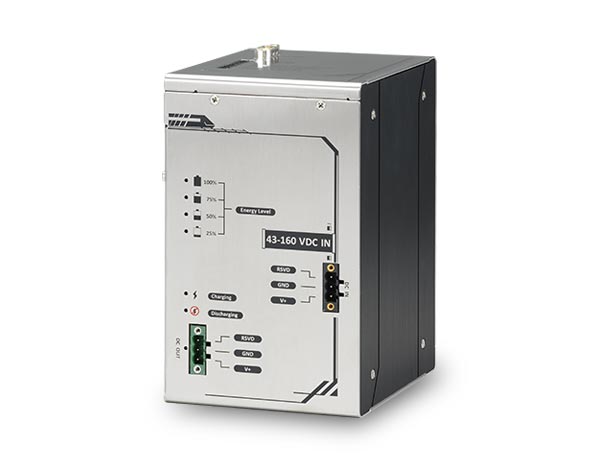

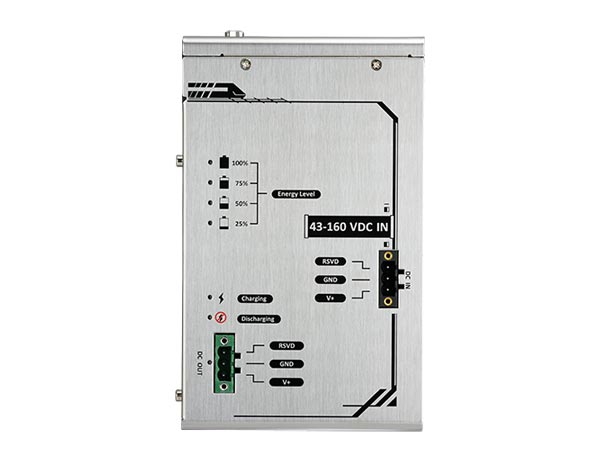

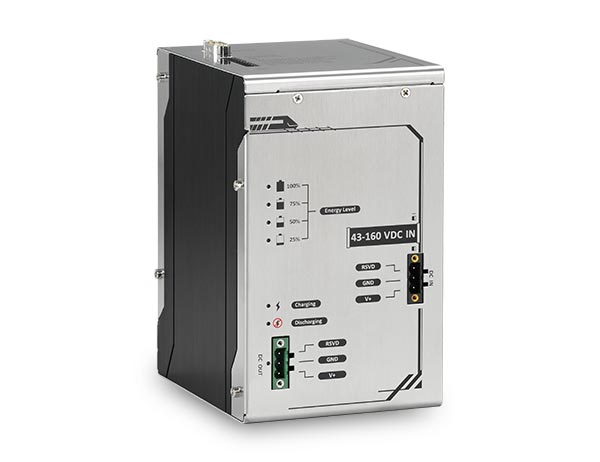

宸曜科技PB-9250J-110V是一款針對高速成長鐵路應用而設計的新型SuperCAP UPS，可接受110V直流輸入。PB-9250J-110V是由八個370F超級電容器所組成，可提供9250瓦.秒之儲能，以便在斷電期間讓後端系統多維持幾秒到幾分鐘的運轉時間以確保系統不會因突然斷掉造成毀損。與採用電池的傳統不斷電系統不同，超級電容器具有更寬廣的工作溫度範圍和長達10年的使用壽命。宸曜科技的PB9250J-110V具有-40至70°C的寬溫運作範圍和極高的耐用性。
PB-9250J-110V 採用宸曜專利的CAP電能管理技術，可以提供精密複雜的功能，包含即時電能與功耗之監控、高/低電壓保護和自動/手動關機控制等。本產品可以自動管理開機和關機，能幫助您的系統在電源不穩定的列車上正常運作。此外，本產品還採用了額外的數位輸出通道，可用於指示系統狀態，例如充電、放電，以及電源按鍵控制。
雖然電腦系統已經被廣泛部署在各種鐵路應用中，但列車的電氣穩定性仍然是一大關鍵，而且對系統可靠性至關重要。PB-9250J-110V能在列車通過平交道或鐵路轉轍器時，保護系統或其他設備免於電源中斷的影響。此外，PB-9250J-110V已經取得了EN 50155和EN 45545認證，可以輕鬆與現有的電腦與設備搭配安裝，或整合到現行的配電系統中。
詳細規格
| Supercapacitor Configuration |
| Composition |
8x 370F, 3.0V supercapacitors |
| Capacity |
9250 watt-second |
| Expected lifespan |
>10 years* |
| Cycle life |
500,000 charging/ discharging cycles* |
| Power Specification |
| Input Voltage |
43-160 VDC |
| Input Connector |
1x 3-pin pluggable terminal block (V+, GND) |
| Output Voltage |
24 VDC |
| Output Power |
Maximum 120W output |
| Output Connector |
1x 3-pin pluggable terminal block (V+, GND) |

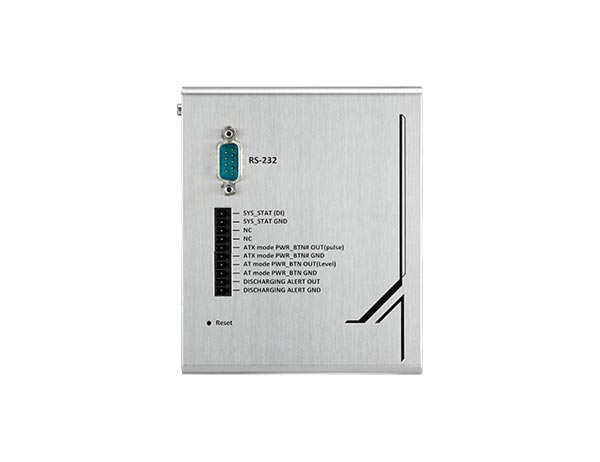

| I/O Interface |
| COM Port |
1x DB9 for 3-wire isolated RS-232 |
| Iso. DIO |
1x 10-pin pluggable terminal block for
- ATX mode PWR_BTN# output (open-drain, pulse type)
- AT mode PWR_BTN output (open-drain, level type)
- DISCHARGING ALERT output (open-drain, level type)
- SYS_STAT input |
| Mechanical |
| Dimension |
110(W) x 175.2mm(H) x 128.2mm(D) |
| Weight |
2.33kg |
| Mounting |
DIN-rail mounting or optional wall-mounting |
| Environmental |
| Operating Temperature |
-40°C ~ 70°C EN50155 OT4 class |
| Storage Temperature |
-40°C ~ 85°C |
| Vibration |
Compliant with IEC61373:2010, Category 1, Class B Body mounted (part of EN50155) |
| Shock |
Compliant with IEC61373:2010, Category 1, Class B Body mounted(part of EN50155) |
| EMC |
EN 50155:2017, Clause 13.4.8
CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN50155 |
EN50155 All mandatory sections of EN 50155:2017 |
| EN45545 |
EN45545 EN 45545-2 (Fire protection on railway vehicles) |
To achieve > 10 years lifespan under 24/7 at 70°C operation, please charge PB-9250J-SA to 6525J energy level using the 4.8x SuperCAP Lifetime Extension setting (please refer to the user manual for details). Once the rated lifetime or cycle life has been reached, the capacity of supercapacitor may decrease up to 30% and ESR may increase up to 100% from initial values.
** Backup time for uninterruptible operation may be reduced when sustaining a back-end system with high power consumption. Please consult with Neousys Technology if your computer accepts only constant-voltage input.
*** To ensure PB-9250J‘s power backup operation functions as intended, please contact Neousys Technology technical support if your connecting back-end system accepts only constant voltage input.
PB-9250J-110V
電能容量9250瓦‧秒的獨立超級電容式UPS模組配備110V直流輸入，適用於鐵路應用
Wmkit-V-PB9250J-110V
PB-9250J-110V 壁掛式安裝組件，立式
