개관
소개

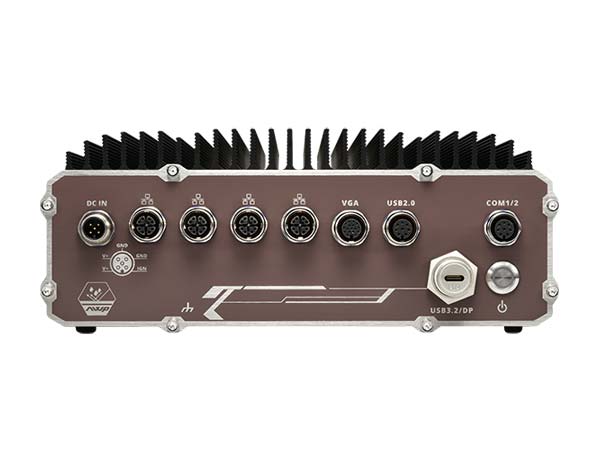

Nuvo-9650AWP는 극심하고 까다로운 환경에 맞게 설계된 Intel® 14/13/12세대 코어™ 프로세서를 탑재한 가성비 높은 IP66 방수 컴퓨터입니다. 세련됐지만 견고한 방수 섀시와 표준화된 케이블 키트를 갖춘 Nuvo-9650AWP는 작동 온도 확장, 충격/진동 대비, 먼지와 습도, 염분에 대한 견고한 저항성을 포함한 핵심적인 성능 강화를 진행하고서도 저렴한 총획득비용(TCO)을 달성하여 더욱 진보한 산업용 컴퓨터를 새로 정의합니다.
Nuvo-9650AWP는 방수 가능한 M12 커넥터를 채택하여 다수의 2.5GbE/GbE, USB 2.0, Isolated RS-232 및 RS-422/485 포트를 포함하여 일반 애플리케이션 요구 사항에 맞는 풍부한 I/O 기능을 제공합니다. 또한 5 Gbps USB3 데이터 전송 속도와 4K DisplayPort 영상 출력을 겸하는Type-C 포트가 있으며 커넥터는 특수 방수 처리되어 있습니다.더욱이, Nuvo-9650AWP에는 점화 전원 컨트롤 기능이 내장된 8~48V의 광범위한 DC 입력을 지원하며 농업용 차량 및 광산용 트럭과 같은 오프로드 차량 설치를 위해 MIL-STD-810H 충격/진동 인증을 준수합니다.
IP66 방수 성능이 임베디드 컴퓨터와 통합되어 먼지나 액체에 대한 노출이 우려되는 환경에서 컴퓨터를 사용해야 하는 제약을 제거합니다. 합리적인 가격의 방수 설계를 통해 예산에 민감한 프로젝트의 총획득비용(TCO) 부담을 대폭 줄일 수 있는 Nuvo-9650AWP는 견고한 성능과 비용 사이에서 최적점을 제시하는 임베디드 컴퓨터의 새로운 범주를 정의합니다.
■ NEOUSYS MARKETING TEAM
Specification
| System Core |
|---|
| Processor |
Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-14900/ i9-14900T
- Intel® Core™ i7-14700/ i7-14700T
- Intel® Core™ i5-14500/ i5-14400/ i5-14500T
- Intel® Core™ i3-14100/ i3-14100T |
Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-13900E/ i9-13900TE
- Intel® Core™ i7-13700E/ i7-13700TE
- Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
- Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU
(LGA1700 socket, 35W/ 65W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE |
| Chipset |
Intel® H610E platform controller hub |
|---|
| Graphics |
Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
|---|
| Memory |
Up to 96 GB DDR5 4800 SDRAM (two SODIMM slots) |
|---|
| TPM |
Supports dTPM 2.0 |
|---|
| I/O Interface |
|---|
| Ethernet |
1x Gigabit Ethernet port by Intel® I219-LM (M12 X-coded)
3x 2.5G Ethernet ports by Intel® I226-IT (M12 X-coded) |
|---|
| PoE+ |
Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE/GbE ports 100 W total power budget |
|---|
| USB 3.2 |
1x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector
1x reserved USB 3.2 Gen1 type-A connector (rear side) |
|---|
| USB 2.0 |
2x USB 2.0 (M12 A-coded)
1x USB 2.0 (internal) |
|---|
Video Port
(Integrated Graphics) |
1x DisplayPort in type-C waterproof connector, supporting 4096 x 2304 resolution
1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
1x reserved DisplayPort, supporting 4096 x 2304 resolution (rear side)
|
|---|
| Serial Port |
1x isolated RS-232 port (COM1)
1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector |
|---|
| Storage Interface |
|---|
| SATA HDD |
2x Internal SATA port for 2.5" HDD/ SSD installation |
|---|
| Storage Interface |
|---|
| M.2 |
1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
|---|
| Internal Expansion Bus |
|---|
| Mini PCI Express |
2x full-size mini PCI Express socket (PCIe + USB2) |
|---|
| M.2 B key |
1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module |
|---|
| Power Supply |
|---|
| DC Input |
8V to 48V DC input with built-in ignition power control |
|---|
| Mechanical |
|---|
| Dimension |
225mm (W) x 286mm (D) x 90mm (H) |
|---|
| Weight |
5.25 kg |
|---|
| Mounting |
wall-mounting (Optional) |
|---|
| Environmental |
|---|
| Operating Temperature |
Operating Temperature with 35W CPU
-25°C ~ 70°C*
with 65W CPU
-25°C ~ 70°C* (configured as 35W TDP mode)
-25°C ~ 50°C* (configured as 65W TDP mode) |
|---|
| Storage Temperature |
-40°C ~ 85°C |
|---|
| Humidity |
10%~90% , non-condensing |
|---|
| Vibration |
MIL-STD-810H, Method 514.8, Category 4 |
|---|
| Shock |
MIL-STD-810H, Method 516.8, Procedure I |
|---|
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
|---|
* For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
Nuvo-9650AWP
M12 타입 3개의 2.5GbE, 1개의 GbE 포트 및DP 디스플레이/USB 3.2 겸용의 Type-C 포트를 가진 저렴한 IP66 방수 Intel® 14/13/12세대 Core™ 컴퓨터
Nuvo-9650AWP-PoE
4개의 M12 PoE+ 포트 및DP 디스플레이/USB 3.2 겸용의 Type-C 포트를 가진 저렴한 IP66 방수 Intel® 14/13/12세대 Core™ 컴퓨터
옵션 액세서리
PA-160W-OW
160W AC/DC 전원 어댑터 20V/8A ; 18AWG/120cm; 터미널 블록용 코드 엔드 터미널, 작동 온도: -30°C ~ 70°C (35W CPU에 사용에 권장됨)
PA-280W-CW6P-2P
280W AC/DC 전원 어댑터 24V 11.67A, 85~264VAC, -30~+70°C, AWP/SEMIL용FML 6P to 2P 엔드 터미널 케이블 포함 (PoE+ 옵션이 있는 65W 또는 35W CPU에 사용에 권장됨)
Cblkit-M12-Nuvo-9650AWP
Nuvo-9650AWP M12 케이블 키트: 4x M12-RJ45-100CM, 1x M12-2USB-180CM, 1x M12-VGA-180CM, 1x M12-2DB9-180CM, 1x M12-OW3-180CM
Cblkit-M12-Nuvo-9650AWP-PoE
Nuvo-9650AWP-PoE M12 케이블 키트: 4x M12-RJ45-100CM, 1x M12-2USB-180CM, 1x M12-VGA-180CM, 1x M12-2DB9-180CM, 1x M12-OW5-180CM
Cbl-TpCPlug-DPM-1M
Type-C Male 플러그 to DP Male 케이블, 길이: 1M
Cbl-TpCPlug-U3TA-50CM
Type-C Male 플러그 to USB 3.0 Type-A FML, 길이: 50CM
Cbl-TpCPlug-UTpCF-50CM
TypeC 남성 플러그에서 USB Type-C 여성 케이블, 길이: 50CM
Wmkit-Nuvo9650AWP
Nuvo-9650AWP용 월 마운팅 어셈블리
