Overview
Neousys MezIO® (interchangeable mezzanine I/O board) is an interface module designed for incorporating application-oriented I/O functions into an embedded system.
Build Your Application Platform with Neousys MezIO®
Neousys MezIO® interface offers computer signals, power rails and control signals via a high-speed connector. The MezIO® module transforms Neousys embedded systems into application-specific systems with application-oriented I/Os. Mechanical and structure wise, MezIO® benefits from 3-point mounted mezzanine structure for extra reliability in implementing comprehensive I/O functions.
Neousys provides MezIO® modules with various IOs such as RS-232/422/485, isolated DIO, ignition power control and storage expansion. Users can also leverage signals/powers on MezIO® to create a module with specific domain know-how. MezIO® presents a cost-effective way to build a tailor-made embedded system for your embedded system applications.
Concept of MezIO® Interface
Neousys MezIO® (interchangeable mezzanine I/O board) is the interface module designed for incorporating application-oriented I/O functions into an embedded system.
High-speed board-to-board connector
Offering various signals and power rails via a high-speed connector with motherboard for high-density and high-power applications.
Ordering Information
| 8-port RS-232/422/485 | |
|---|---|
| MezIO-C180-50 | 4x RS-232/ 422/ 485 and 4x RS-232 ports MezIO® module for Nuvo-11160GC/ Nuvo-11000/ Nuvo-9000/ Nuvo-7000/ POC-900/ POC-700/ POC-600/ POC-500/ POC-400/ POC-300 series |
| MezIO-C181-50 | 4x RS-232/ 422/ 485 and 4x RS-422/ 485 ports MezIO® module for Nuvo-11160GC/ Nuvo-11000/ Nuvo-9000/ Nuvo-7000/ POC-900/ POC-700/ POC-600/ POC-500/ POC-400/ POC-300 series |
| Cbl-S68M-8DB9M-50CM | SCSI-68(M) to 8x DB-9(M) cable, 50 cm |
| 32/16-CH Isolated Digital I/O | |

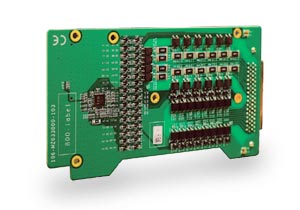

| MezIO-D330 | 16-CH isolated DI and 16-CH isolated DO MezIO® module for Nuvo-11160GC/ Nuvo-11000/ Nuvo-9000/ Nuvo-7000/ POC-900/ POC-700/ POC-600/ POC-500/ POC-400/ POC-300 series |
| MezIO-D230-50 | 16-CH isolated DI and 16-CH isolated DO MezIO® module for Nuvo-9000/ Nuvo-7000/ POC-500/ POC-300 Series |
| MezIO-D220-50 | 8-CH isolated DI and 8-CH isolated DO MezIO® module for Nuvo-9000/ Nuvo-7000/ POC-500/ POC-300 Series |
| Cbl-S68M-S68M-100CM | SCSI-68(M) to SCSI-68(M) cable, 100 cm |
| TB-10 | Terminal board with 68-pin SCSI-II female connector and 68-pole terminal block |
| 4x GigE ports | |
| MezIO-G4P | 4-Port GbE with 802.3at PoE+ MezIO® module for Nuvo-11160GC/ Nuvo-11000/ Nuvo-9000/ Nuvo-7000 series |
| MezIO-G4 | 4-Port GbE MezIO® module for Nuvo-11160GC/ Nuvo-11000/ Nuvo-9000/ Nuvo-7000/ POC-900/ POC-500 series |
| SATA port for 2.5" HDD/SSD | |
| MezIO-R11 | MezIO® module with 2.5" SATA HDD/ SSD for POC-700/ POC-600/ POC-500/ POC-400/ POC-300 series |
| MezIO-R12 | MezIO® module with SATA port for 2.5" HDD/ SSD, 4-CH isolated DI and 4-CH isolated DO for POC-700/ POC-600/ POC-500/ POC-400 series |
| 4 x USB 3.1 ports | |
| MezIO-U4-30 | 4-port USB 3.1 MezIO® module for POC-700/ POC-600/ POC-500/ POC-400/ POC-300 series |
| MezIO-U4-50 | 4-port USB 3.1 MezIO® module for POC-900/ POC-500 series, and Nuvo-11160GC/ Nuvo-11000/ Nuvo-9000/ Nuvo-7000 series |
| 16-mode Ignition Power Control | |
| MezIO-V20-EP | 16-mode ignition power control MezIO® module for in-vehicle usage for Nuvo-11160GC/ Nuvo-11000E/ Nuvo-9000E/P/DE/ Nuvo-9160GC/ Nuvo-9166GC/ Nuvo-7160GC/ Nuvo-7164GC/ Nuvo-7000E/P/DE series |
| MezIO-V20 | 16-mode ignition power control and 1x mini-PCIe socket (USB2 only) for in-vehicle usage for POC-900/ POC-700/ POC-500/ Nuvo-11000LP/ Nuvo-9000LP/ Nuvo-7000LP series |
| MezIO-V21 | 16-mode ignition power control and 1x mini-PCIe socket (USB2+PCIe) for in-vehicle usage for POC-900/ POC-700/ POC-600/ POC-500/ Nuvo-11000LP/ Nuvo-9000LP/ Nuvo-7000LP series |
