Neousys' GigE and USB frame grabber cards feature excellent operating compatibility and reliability with the best cost/performance ratio. Available in 1G, 5G and 10G variants, the expansion cards support high-definition resolution and frame rate with independent controllers to sustain data transfer rate per port.
Neousys' GigE frame grabber cards feature proven 802.3at PoE+ capability with RJ45 or M12 connectors that benefit vision-related applications for outdoor or harsh industrial environments with high-performance and stable cable connections.
Product Highlights
Support 1Gbit/s, 5Gbit/s and 10Gbit/s Bandwidth
Neousys' frame grabber cards are available in 1G, 5G and 10G variants while compatible with GigE, 5GigE, 10GigE and USB3 cameras.
Proven 802.3at PoE+ Technology
Inheriting Neousys' expertise on PoE technology, the PoE cards offer up to 25.5W of power per port, with power on/ off control by programmable API software to reset cameras or other devices for fault recovery.
Rugged Cable Connection with M12 Connectors
Neousys provides Gigabit 802.3at PoE+ cards with M12 x-coded connectors that can withstand extra stress on the cable/connector for edge computing and rugged surveillance applications.
Independent Controllers
Featuring independent controllers, Neousys frame grabber cards can sustain transfer data with a maximum per-port performance even when multiple devices are connected.Selection Guide:
| Model Name | Bandwidth | GbE/ USB Ports | IEEE 802.3at PoE+ capability |
M12 Connectors | Support OS/driver |
Datasheet | |
 |
PCIe-PoE334LP | 1Gbit/s | 4 | Up to 25.5W per port (Total 74W) |
Win XP/7/8/8.1/10 | Download | |
 |
PCIe-PoE354at | 4 | Up to 25.5W per port (Total 66W) |
Download | |||
 |
PCIe-PoE352at | 2 | Up to 25.5W per port (Total 51W) |
Download | |||
 |
PCIe-PoE312M | 4 | Up to 25.5W per port (Total 66W) |
V | Download | ||
 |
PCIe-USB381F | 5Gbit/s | 8 (USB3/ 2.0/ 1.1/ 1.0) | - | Win 7/10 | Download | |
 |
PCIe-PoE550X | 2 | Up to 25.5W per port (Total 51W) |
Win 10 | Download | ||
|
PCIe-PoE550X | 10Gbit/s | 2 | Download | |||
 |
PCIe-PoE572bt | 10 Gbit/s | 2 | Up to 90W per port (Total 180W) | Download | ||
 |
PCIe-PoE425bt | 2.5 Gbit/s | 4 | Up to 90W per port (Total 144W) (From on-board 6-pin power connector) |
Download | ||
 |
PCIe-PoE454at | 5 Gbit/s | 4 | Up to 25.5W per port (Total 100W) |
Download | ||
Applications

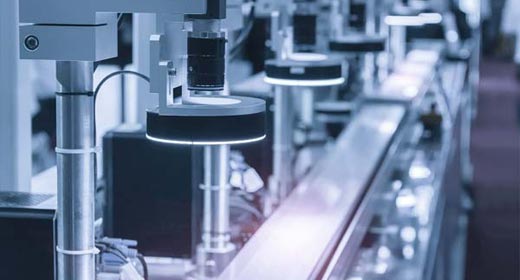

Machine Vision
Neousys PoE+ and USB3.0 frame grabber cards support various bandwidth cameras from 1G to 10G with high throughput and high-speed image acquisition without data loss for high-performance machine vision applications.
Vision Guided Robot
Installed the PoE+ frame grabber card into a box PC and connect up to four 3D cameras for robotic arm application to enable pick & place functionality for factory automation.(learn more)
IP Surveillance
Available in low profile form factor and offering excellent bandwidth and sustained performance, Neousys' PoE+ frame grabber card is a perfect fit in commercial 2U servers for PTZ IP cameras and mobile surveillance applications.
