Overview
Introduction

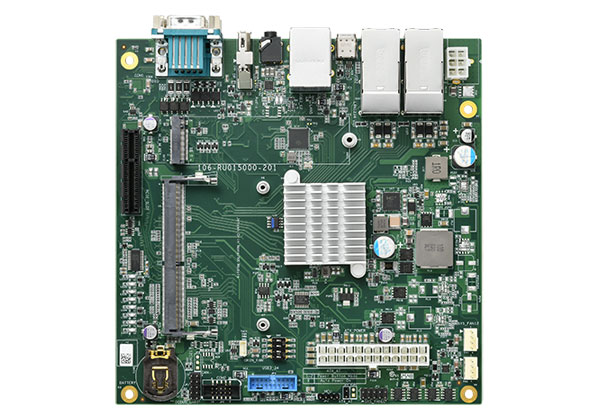

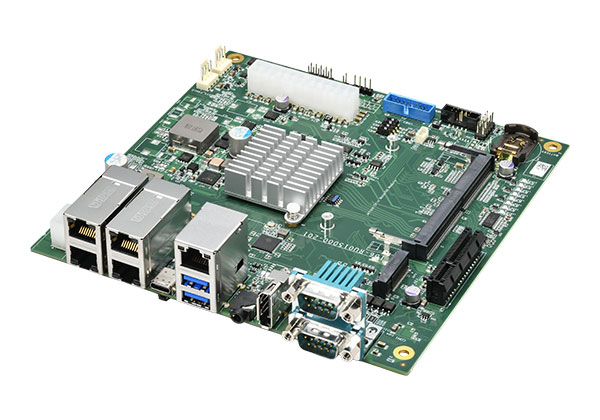

The Neousys Jemii-150 series is designed to significantly reduce the integration barrier for industrial NVIDIA® Jetson deployments. By combining a Mini-ITX form factor with NVIDIA Jetson Orin™ Nano Devkit compatibility, the platform enables a streamline transition from development to field deployment on a unified hardware and software baseline, eliminating the need for custom BSP development, hardware redesign, or rugged embedded systems expertise.
Jemii-150 is 100% BSP-compatible with the NVIDIA Jetson Orin™ Nano DevKit, supporting direct flashing via NVIDIA SDK Manager across all JetPack releases. This ensures software portability, minimize migration effort, and reduces time-to-market risk associated with platform transitions. The Mini-ITX form factor further leverages a mature ecosystem of standard chassis, thermal solutions, and power supplies, simplifying mechanical
integration and system redesign.
Engineered for industrial edge AI applications, Jemii-150 operates over a wide temperature range of -25°C to 70°C and accepts either 9–32 V DC or standard ATX power input. Its I/O includes 5× GbE LAN featuring optional PoE++ support with a shared 100W total budget, 3× isolated DI and 3x isolated DO, and hardware-configurable RS-232/422/485 serial interfaces. The platform also provides a PCIe expansion slot for system function extension such as Ethernet, USB 3.0, PoE, or DIO.
The product line comprises of three variants: Jemii-150A and Jemii-150A-PoE, which integrate Allxon out-of-band (OOB) remote management for retail and intelligent transport system (ITS) applications, while Jemii-150D-PoE adds CAN 2.0 support for indoor AMR and autonomous logistics. Purpose-built for indoor IVA and AMR applications, Neousys Jemii-150 series is a deployment-ready edge AI platform backed by Neousys' commitment to industrial product longevity and lifecycle stability.
■ NEOUSYS MARKETING TEAM
Specification
| System Core |
| Processor |
NVIDIA Jetson Orin™ NX system-on module (SOM), comprising NVIDIA Ampere GPU and ARM Cortex CPU |
NVIDIA Jetson Orin™ Nano systemon module (SOM), comprising NVIDIA Ampere GPU and ARM Cortex CPU |
| Memory |
16GB/ 8GB LPDDR5 @ 3200 MHz on SOM |
8GB/ 4GB LPDDR5 @ 2133 MHz on SOM |

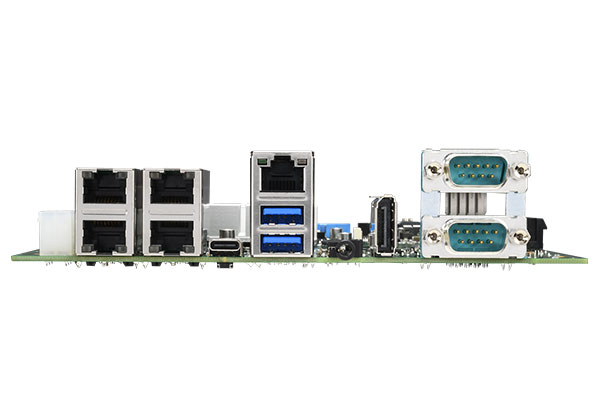

| Panel I/O Interface |
| Ethernet port |
4x Gb Ethernet ports by Intel® I350-AM4
1x Gb Ethernet port by NVIDIA Jetson Orin™ NX/Nano |
| PoE Capability |
In compliance with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximum 90W output on single PoE++ port (total 100W max.), compatible with 802.3at (PoE+) and 802.3af (PoE) PD |
| USB |
2 x USB 3.2 Gen1 port
1 x OTG Type-C |
| Serial Port |
1x hardware configurable RS232/ 422/ 485 port |
| Video Port |
1x DP 1.2 port |
| DIO |
3x isolated DI+3x isolated DO |
| Audio |
1x 3.5 mm jack for mic-in and speaker-out |
| Internal I/O Interface |
| Storage |
1x M.2 M 2280 key (PCIe Gen4 x1) |
| PCIe slot |
1x PCIe Gen3 x4 slot |
| USB |
2x USB 3.2 Gen 1 (2.0mm 2x10 Pin Header) |
| I2C |
1x I2C (2.54mm Pin Header) |
| Internal I/O Interface |
CAN Bus
(Only for Jemii-150DPoE) |
1x CAN bus 2.0 (2.54mm Pin Header) |
Serial Port
(Only for Jemii-150DPoE and Jemii-150APoE) |
1x RS-232 (2.54mm Box Header) |
| Fan |
2x Fan connector (2.54mm Wafer)
1x Orin Nano/NX Fan connector (1.25mm Wafer) |
| Others |
1x Front Panel Connector
1x ATX/AT Mode Select (2 Pin jumper)
1x Debug UART (2.54mm Pin Header)
1x 5V, 3x GND (2.54mm Pin Header) |
| Power Supply |
DC Input |
Jemii-150D-PoE: 9V to 32V DC input
Jemii-150A-PoE: ATX power + PCIe 6-pin
Jemii-150A: ATX power |
| Mechanical |
| Dimension |
Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| Weight |
200g |
| Environmental |
| Operating Temperature |
-25°C to 70°C |
| Storage Temperature |
-40°C ~ 85°C |
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
Jemii-150D-PoE
Mini-ITX Jetson carrier, compatible with NVIDIA Jetpack releases, 4x PoE++ GbE, 1x GbE and PCIe, 9V to 32V DC input
Jemii-150A-PoE
Mini-ITX Jetson carrier, compatible with NVIDIA Jetpack releases, 4x PoE++ GbE, 1x GbE and PCIe, ATX support + ATX 6-pin
Jemii-150A
Mini-ITX Jetson carrier, compatible with NVIDIA Jetpack releases, 5x GbE and PCIe, ATX support
Jemii-150A-PoE-Box
Jemii-150A-PoE with selected Mini-ITX chassis and Flex ATX power
Jemii-150A-Box
Jemii-150A with selected Mini-ITX chassis and Flex ATX power
AccsyBx-Orin NX/Nano Cooler
Cooler kit for Orin NX/Nano Module
PS-250W-ATX
250W Flex ATX power adapter for Jemii-150A/ Jemii-150A-PoE
PA-160W-OW
160W AC-DC power adapter 20V 8A, 90~264VAC 127~370VDC, -30~+70°C for Jemii-150D-PoE
Cbl-IDC210F-DB9M-20CM1
10Pin Female to DB9 Male Cable, Length: 20 CM
