Deploying Jetson Projects with Neousys NRU Series

While NVIDIA's Jetson developer kit can complete your proof-of-concept and bring products into mass production, you may however still encounter other challenges when deploying your system into the field, such as low/ high temperature, dust, vibration, irregular voltage, the need for ignition power, function expansion, installation space availability, etc. For your system to operate stably and reliably in the field, you may have to spend a lot of extra resources and time.

Neousys NRU series is based on the NVIDIA® Jetson platform, it is a turnkey solution that can be mass-produced. The Neousys NRU series is fully integrated with Neousys DNA characteristics, such as true fanless wide temperature operations from -25°C to 70°C, wide-range voltage input, and stable operations in shock and vibration environments. NRU series support industrial USB, GigE, IP, or GMSL cameras, 10Gb Ethernet, and various I/O interfaces for sensor connectivity. It also features ignition control, CAN bus, DIO, and mini-PCIe socket expansion for wireless communications to accommodate in-vehicle and mobile robotics applications.

The Neousys NRU series can be seamlessly implemented into your solution as we've already eliminated most of the challenges for you. Such as field deployment environment conditions are no longer limiting factors, and when you need additional connectivity for peripherals, the NRU offers plenty. All you have to do is implement and deploy.
(Learn more about Neousys NRU Series)



NRU Sereis Development

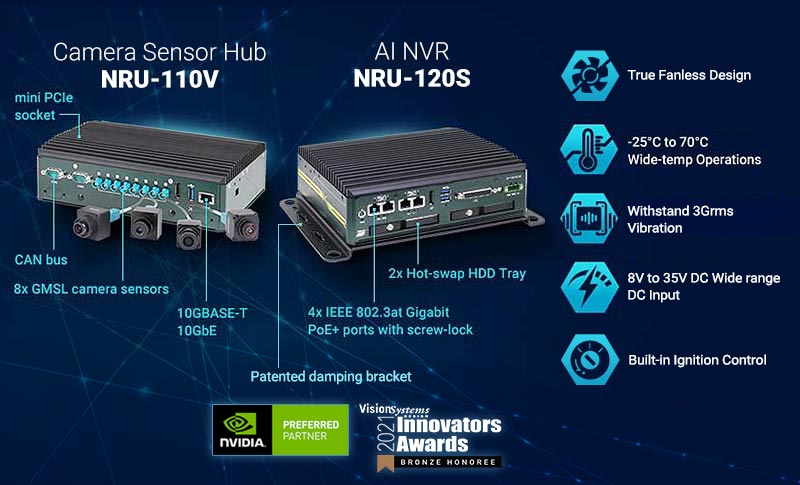

Unboxing Neousys NRU-110V/ 120S Edge AI Platform

30W NVIDIA® Jetson AGX Xavier AI Platform - NRU-120S



Neousys NRU Series vs. Developer Kit

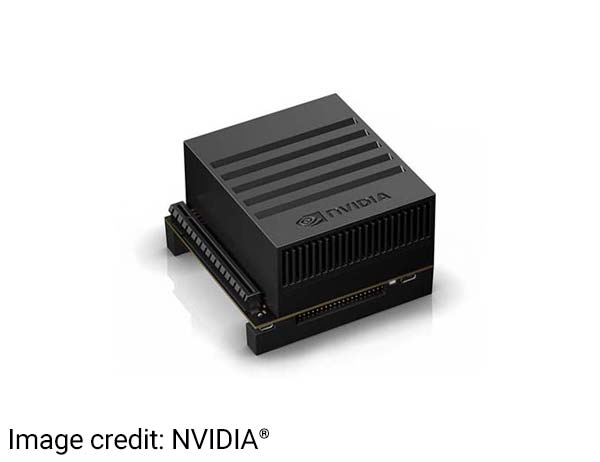

NVIDIA® Jetson AGX Xavier™ Dev Kit NRU-120S NVIDIA® Jetson AGX Xavier™ AI NVR NRU-110V NVIDIA® Jetson AGX Xavier™ Edge AI Platform
NVIDIA® Jetson AGX Xavier Developer Kit NRU-120S NRU-110V
Purpose Prototype Mass Deployment
Chassis &
Mounting Kit
N/A Industrial Grade Chassis Design & Patented Damping Bracket to Withstand 3Grms Vibration
Operating
Temperature
N/A -25°C to 70°C Fanless Operation
Power Input Fixed Voltage Input 8V to 35V DC Wide Voltage Input & Ignition Power Control for In-vehicle Deployment
Ethernet 1x GbE 4x GbE with PoE+ 1x 10GbE
GMSL N/A Supporting 8x GMSL Cameras

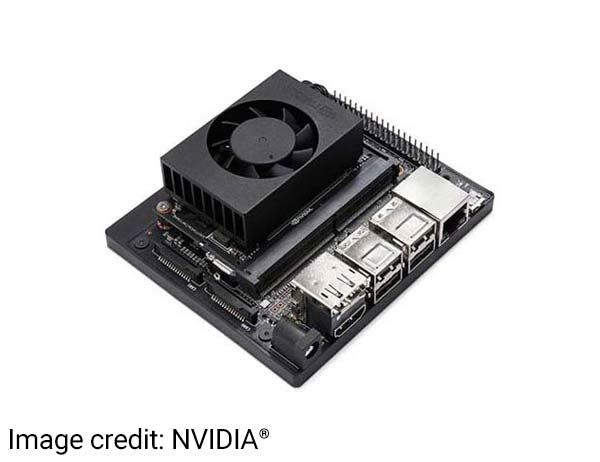

NVIDIA® Jetson Xavier NX Developer Kit NRU-52S NVIDIA® Jetson Xavier™ NX Edge AI Computer with 4x PoE++ Ports for Intelligent Video Analytics
NVIDIA® Jetson Xavier NX Developer Kit NRU-52S
Purpose Prototype Mass Deployment
Chassis &
Mounting Kit
N/A Industrial Grade Chassis Design
Operating
Temperature
N/A -25°C to 70°C Fanless Operation
Power Input Fixed Voltage Input 8V to 35V DC Wide Voltage Input & Ignition Power Control for In-vehicle Deployment
Ethernet 1x GbE 4x GbE with PoE++
GMSL N/A
