Nuvo-3100VTC series (Discontinued)

Intel® 3rd-Gen Core™ i7/i5 lüfterloser eingebettet fahrzeug computer mit 4x 802.3at PoE ports, Ignition power control und EN50155 certification

  • 210 mm x 165 mm x 59 mm very compact size
  • Intel® 3rd-Gen i7/i5 PGA-type processor
  • User-configurable CPU power mode for adapting to various environments
  • 4x IEEE 802.3at (25.5W) Gigabit PoE ports
  • DVI/VGA + DisplayPort triple independent display outputs
  • Dual 2.5" SATA ports with one easy-swappble HDD tray
  • 8 ~ 35V wide-range DC input and built-in ignition power control

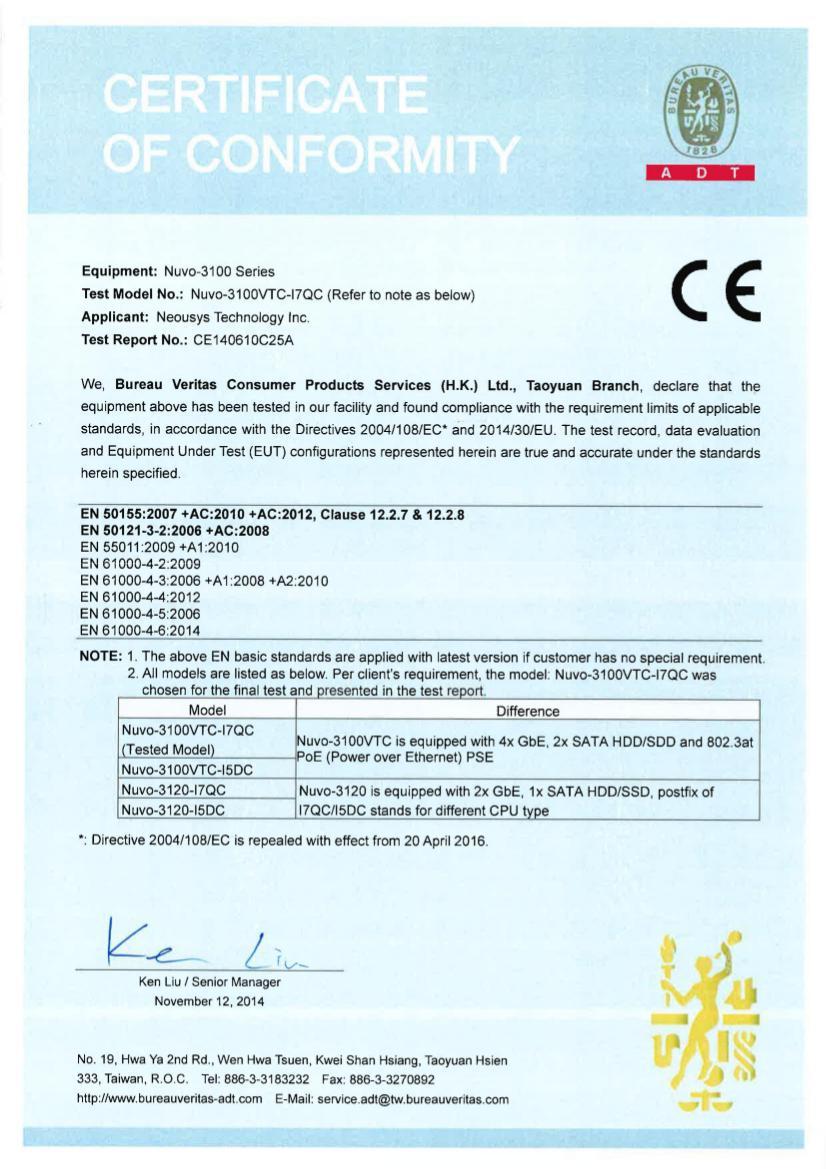

  • E13 No. 10R-0413512 and EN 50155/EN 50121-3-2/EN45545 certificate

Datenblatt

Downloads

Angebot

Bitte beachten Sie, dass dieses Produkt eingestellt wurde. Einen empfohlenen Ersatz finden Sie unter folgendem Link »

Overview

Introduction

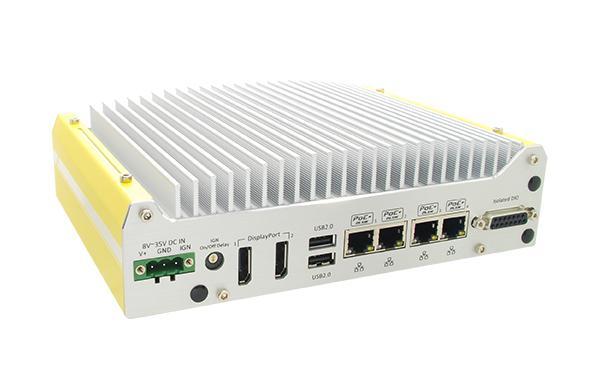

Nuvo-3100VTC is a in-vehicle fanless embedded controller with E-Mark and EN50155/EN50121-3-2 certificate for in-vehicle usage. It supports 3rd-Gen i7 quad-core CPU to provide extraordinary performance for emerging high-end requirements. It also integrates four IEEE 802.3at PoE+ ports to facilitate Ethernet connectivity and power IP cameras for surveillance applications.

Nuvo-3100VTC takes into account all demands of in-vehicle applications. It has very compact footprint to fit into restricted space. Its 8V to 35V wide-range DC input and enhanced surge protection make Nuvo-3100VTC highly robust when car power applied.

Nuvo-3100VTC further incorporates built-in RAID supporting data striping (RAID 0) and data mirroring (RAID 1) for two 2.5" HDDs. You can also take advantage of the easy-swappable HDD tray for easy HDD replacement. For in-vehicle installation, our patent mounting bracket can absorb shock/vibration and extend overall system reliability.

Combining superior performance, PoE+ and comprehensive design, Nuvo-3100VTC presents more possibilities for innovative in-vehicle applications!

■

Product Highlights

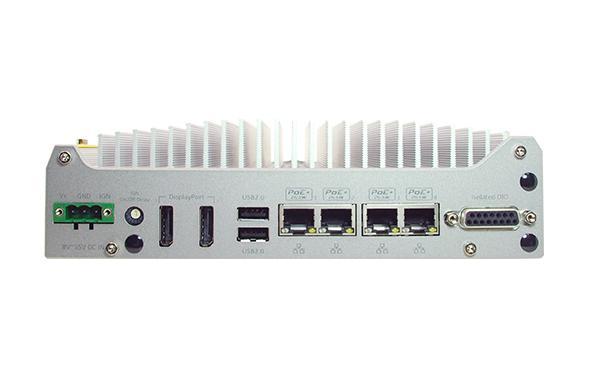

4x 802.3at PoE+ Ports

Power Over Ethernet, or PoE, is a technology that passes electrical power along with data on a single CAT5/6 cable. Compliant with IEEE 802.3at PoE+ standard, Nuvo-3100VTC can supply 25.5W to each of its four ports. For in-vehicle surveillance applications, PoE+ significantly reduces the complexity of camera installation as only one CAT5/6 cable is enough to connect and power the camera.

4x 802.3at PoE+ Ports
RAID with Easy-Swappable HDD Tray

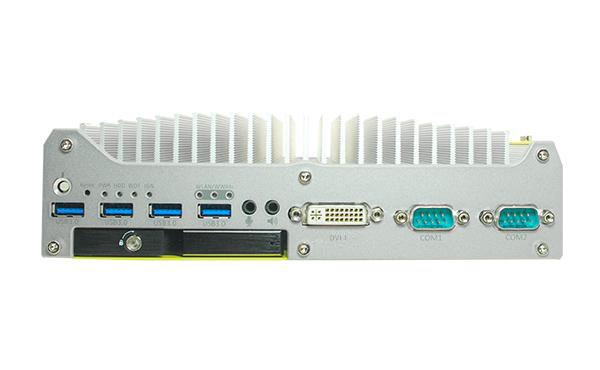

Nuvo-3100VTC has built-in hardware RAID to enhance reliability and efficiency of disk access. It maintains two 2.5" SATA drives and supports RAID 0 (higher throughput) and RAID 1 (data redundancy). In addition, Nuvo-3100VTC hosts a easy-swappable HDD tray to accommodate one of SATA drives for storing portable information.

RAID with Easy-Swappable HDD Tray
Comprehensive Power Design for In-Vehicle Applications

Aiming at in-vehicle usage, Nuvo-3100VTC has comprehensive power circuitry design. It accepts 8V to 35V DC input range with enhanced surge protection to work reliably with battery power on the car (12V) or bus/truck (24V). Ignition power control is implemented to respond ACC signal according to configurable power on/off delay.

Application

1. Fleet management

2. Mobile NVR

3. Real-time surveillance/security

4. High-end digital signage

Specification

System Core
Processor Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache)
Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache)
Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache)
Chipset Intel® QM77 PCH with AMT & RAID support(Nuvo-3100VTC)
Intel® HM76 PCH(Nuvo-3120)
Graphics Integrated Intel® HD Graphics 4000 Controller
Memory 1x 204-pin SO-DIMM sockets,
up to 8 GB DDR3 1333/1600 MHz SDRAM
I/O Interface
Ethernet 1x Gigabit Ethernet port by Intel® 82579LM
3x Gigabit Ethernet ports by Intel® i210
(Nuvo-3100VTC)
1x Gigabit Ethernet port by Intel® 82579LM
1x Gigabit Ethernet ports by Intel® i210
(Nuvo-3120)
PoE
(Nuvo-3100VTC only)		 Compliant to IEEE 802.3at (25.5W) with per-port power on/off
control
Video Port 1x DVI-I connector for VGA/DVI output, supporting
2048x1536 (VGA) or 1920x1080 (DVI) resolution
2x DisplayPort, supporting 2560x1600 resolution
Serial Port 2x software-programmable RS-232/422/485
(COM1 & COM2)
USB 4x USB 3.1 Gen1 ports and 4x USB 2.0 ports
Isolated DIO 4x isolated DI with COS interrupt and 4x isolated DO
Audio 1x mic-in and speaker-out
Storage Interface
SATA HDD 1x Internal SATA port for 2.5” HDD/SSD
1x Easy-swapable HDD tray for 2.5” HDD/SSD (Nuvo-3100VTC)
1x Internal SATA port for 2.5” HDD/SSD (Nuvo-3120)
mSATA 1x full-size mSATA (SATA/USB/W_DISABLE#) with USIM
socket
Expansion Bus
Mini PCI-E 1x full-size mini PCI Express socket with USIM socket
1x half-size mini PCI Express socket
Power Supply & Ignition Control
DC Input 8V to 35V DC input via 3-pin pluggable terminal block
Ignition Control
(Nuvo-3100VTC only)		 Ignition control with user-selectable on/off delay
Mechanical
Dimension 210 mm (W) x 165 mm (D) x 62 mm (H)
Weight 2.8 kg (including one 2.5” HDD and DDR3 SODIMM)
Mounting Wall-mounting (Standard) or DIN-Rail mounting (Optional)
Operating Temperature
w/i7-3610QE
100% CPU loading		 -25°C ~ 50°C**(Max performance)
-25°C ~ 60°C**(Reduced performance)
-25°C ~ 70°C**(Extended performance)
w/i5-3610ME
100% CPU loading*		 -25°C ~ 60°C**(Max performance)
-25°C ~ 70°C**(Reduced performance)
-25°C ~ 70°C**(Extended performance)
w/Celeron 1020E
100% CPU loading*		 -25°C ~ 70°C**
Environmental
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD,
according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/
SSD, according to IEC60068-2-27)
Certification E-Mark for vehicle applications
EN 50155/ EN 50121-3-2
CE/ FCC Class A, according to EN 55022, EN 55024 & EN 45545

* The 100% CPU loading is applied using Passmark® BurnInTest™ v7.0. For detail testing criteria, please contact Neousys Technology.
**For sub-zero operating temperature, a wide temperature range HDD drive or Solid State Disk (SSD) is required..

Ordering Information

Nuvo-3100VTC-I7QC

Intel® Core™ i7-3610QE fanless in-vehicle controller with 4x 802.3at PoE+ ports and dual-drives RAID

Nuvo-3100VTC-I5DC

Intel® Core™ i5-3610ME fanless in-vehicle controller with 4x 802.3at PoE+ ports and dual-drives RAID

Nuvo-3100VTC-C1020

Intel® Celeron™ 1020E fanless in-vehicle controller with 4x 802.3at PoE+ ports and dual-drives RAID

Nuvo-3110VTC

Intel® 3rd-Gen Core™ i fanless in-vehicle controller with 4x GbE ports and dual-drives RAID

Optional Accessories

DINRAIL-31

DIN-rail mounting assembly for Nuvo-3100VTC series

PA-120W-OW

120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C.
