Übersicht
Der Nuvo-9166GC ist ein robuster Edge-KI-Inferenz-Computer, der durch Nutzung von Intels 14./13./12. Gen-Plattform und NVIDIA® L4 exzellente CPU- und GPU-Leistung bringt. Dank seiner hohen Leistungsdichte und seinen flexiblen Möglichkeiten zur Kameraanbindung ist der Nuvo-9166GC ideal für Multikamera-Anwendungen geeignet, die in Echtzeit reagieren, beispielsweise bei der KI-gesteuerten Sichtprüfung, bei Roboterleitsystemen und für autonome Maschinen.
Durch Unterstützung einer Intel® Core™-CPU mit bis zu 24 Cores/32 Threads bietet der Nuvo-9166GC fast das Doppelte an Leistung wie die 10./11. Gen-Plattformen. Das System unterstützt darüber hinaus NVIDIA® L4 für Anwendungen zur energieeffizienten KI-Beschleunigung, eine GPU der Datacenter-Klasse, die auf der NVIDIA® Ada Lovelace-Architektur basiert. Es bietet bis zu 30,3 TFLOPS an FP32- bzw. 485 TOPS an INT8-Rechenleistung und gibt damit neue Benchmarks für das Industrie-Edge-KI-Computing vor.
Der Nuvo-9166GC nutzt ein bewährtes Thermodesign, das einen zuverlässigen Betrieb des Systems von -25° C bis 60° C garantiert. Die CPU und das DDR5-Speichermodul werden bei dem System passiv gekühlt. Das System hat auch ein abgeschottetes patentiertes Kassettenmodul mit einem Lufttunnel für einen fortlaufenden Kaltluftzustrom durch den passiven Kühlkörper der NVIDIA® L4, was eine optimale Systemleistung gewährleistet. Hinsichtlich der Möglichkeiten zur Kameraanbindung hat der Nuvo-9166GC sechs GbE- und sechs USB 3-Anschlüsse, einen MezIO®-Erweiterungssteckplatz und einen zusätzlichen PCIe-Steckplatz zur Unterstützung von maximal vierzehn Industrie-GigE-Kameras oder achtzehn Industrie-USB 3-Kameras. Zur Speicherung all der Daten aus diesen Kameras bietet das System einen M.2 2280 Gen4x4-Steckplatz für eine NVMe-SSD mit Hochgeschwindigkeitszugriff für Lese- und Schreiboperationen bis zu 7000 MB/s sowie zwei 2,5-Zoll-SATA-HDD-/SSD-Laufwerksschächte für mehr Speicherkapazität.
Der Nuvo-9166GC ist mit seiner robusten Bauweise, dem weitem Betriebstemperaturbereich, serverfähiger KI-Inferenzleistung, leistungsstarker Hybrid-CPU und erweiterbaren Kamerafähigkeiten der perfekte Edge-KI-Inferenzcomputer für vielfältige KI-Anwendungen.
■ NEOUSYS MARKETING TEAM
Technische Daten
| System Core |
| Processor |
Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2]
- Intel® Core™ i9-14900/ i9-14900T
- Intel® Core™ i7-14700/ i7-14700T
- Intel® Core™ i5-14500/ i5-14400/ i5-14500T
- Intel® Core™ i3-14100/ i3-14100T |
Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-13900E/ i9-13900TE
- Intel® Core™ i7-13700E/ i7-13700TE
- Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
- Intel® Core™ i3-13100E/ i3-13100TE
|
Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE |
| Chipset |
Intel® Q670E Platform Controller Hub |
| Graphics |
Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory |
Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| AMT |
Supports Intel vPro/ AMT 16.0 |
| TPM |
Supports dTPM 2.0 |

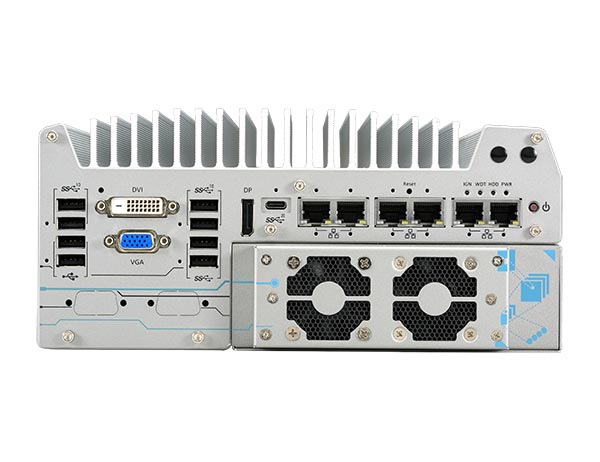

| I/O Interface |
| Ethernet Port |
5x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock |
| POE+ |
Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget |
| USB 3.2 |
1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors |
| USB 2.0 |
2x USB 2.0 ports |
Video Port
(Integrated Graphics) |
1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port |
2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
2x RS-232 ports (COM3/COM4) |
| Audio |
1x 3.5 mm jack for mic-in and speaker-out |
| Storage interface |
| SATA HDD |
2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 |
1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus |
| PCI Express |
2x PCIe x16 slot@Gen3, 8-lanes PCIe signal in Cassette for installing NVIDIA® L4 GPU and one additional PCIe card |
| Mini PCI Express |
1x full-size mini PCI Express socket |
| M.2 |
1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module |
| Expandable I/O |
1x MezIO™ expansion port for Neousys MezIO™ modules |
| Power Supply |
| DC Input |
1x 3-pin pluggable terminal block for 8 to 48V DC input [1]
1x 3-pin pluggable terminal block for 24V DC input (UL series) |
| Remote Ctrl. & LED Output |
1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical |
| Dimension |
240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight |
4.0 kg |
| Mounting |
Wall-mount (standard) or damping bracket (optional) |
| Environmental |
| Operating temperature |
With 35W CPU and NVIDIA® L4 GPU
-25°C to 60°C [2][3]
With 65W CPU and NVIDIA® L4 GPU
-25°C to 60°C[2][3] (configured as 35W TDP)
-25°C to 50°C[2][3] (configured as 65W TDP)
|
| Storage temperature |
-40°C ~ 85°C |
| Humidity |
10% ~ 90% , non-condensing |
| Vibration |
MIL-STD-810H, Method 514.8, Category 4 (with optional damping bracket) |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I (with optional damping bracket) |
| EMC |
CE/FCC Class A, according to EN 55032 & EN 55035 |
| Safety |
UL 62368-1, IEC 62368-1 (UL series only) |
[1]A BIOS update may be required for the system to recognize 14th/13th-Gen processors. Please contact Neousys Technology for more information.
[2] The system is designed to tolerant 8V to 48V voltage fluctuation. The minimal nominal voltage is required with different system configuration. For system with CPU and L4 GPU, 12V or above nominal DC voltage is recommended.
For system with CPU, L4 GPU and additional PoE+ PD and/or high-watt PCIe card, 24V or above nominal DC voltage is recommended.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[4] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.
Nuvo-9166GC
Robuste Edge-KI-Inferenz-Plattform mit Unterstützung für NVIDIA® L4-GPU und Intel® 14./13./12. Gen-Core™-CPU mit Dual-PCIe-Steckplatz
Nuvo-9166GC-UL
Robuster Edge AI Inferenz-Computer mit Unterstützung für NVIDIA® L4 GPU und Intel® 14./13./12. Generation Core™ Prozessor mit zwei PCIe-Steckplätzen und UL-Zertifizierung.
PoE+ Option
Option mit 802.3at PoE+ PSE für 2.5GbE an Port 3 bis 6
Unterstützte MezIO®-Module
Das MezIO®-Modul verarbeitet sowohl Computersignale (Datenbus) als auch Steuerungssignale über einen Hochgeschwindigkeitsanschluss. Außerdem besitzt es eine Stromversorgung. Dieses Modul macht aus Ihrem Neousys-Embedded-System ein anwendungsspezifisches System mit anwendungsorientierten E/A-Komponenten wie RS-232/422/485, isoliertem DIO und Zündsteuerung.
(Klicken Sie hier, um weitergehende Informationen zu kompatiblen MezIO®-Modulen zu erhalten.)
Optionales Zubehör
Dmpbr-Nuvo9160
Neousys' patented damping brackets assembly for Nuvo-9160GC and Nuvo-9166GC
PA-280W-ET2
280W AC/DC-Netzteil 24V/11.67A; 16AWG/100cm, Kabelendklemmen für Klemmenblock, Betriebstemperatur: -30°C bis 60°C.
PA-600W-ENC
600W AC/DC-Netzteil 24V/25A; Kabelend-klemmen für Klemmenblock, Betriebstem-peratur : -20°C bis 70°C.
MezIO® Modules
MezIO®-C180
MezIO® module mit 4x RS-232/ 422/ 485 ports und 4x RS-232 ports
MezIO®-C181
MezIO® module mit 4x RS-232/ 422/ 485 ports und 4x RS-422/ 485 ports
MezIO®-D220
MezIO®-Modul mit 8-Kanal-isoliertem Digi-taleingang und 8-Kanal-isoliertem Digitalaus-gang
MezIO®-D230
MezIO®-Modul mit 16-Kanal-isoliertem Digi-taleingang und 16-Kanal-isoliertem Digitalaus-gang
MezIO®-V20-EP
MezIO®-Modul mit Zündleistungsregelung für den Einsatz im Fahrzeug
MezIO®-U4
MezIO® module mit 4x USB 3.1 ports
MezIO®-G4
MezIO® module mit 4x GigE ports
MezIO®-G4P
MezIO® module mit 4x IEEE 802.3at PoE+ ports
